Springboot添加Canal使用

1、查询数据库是否开启bin日志

show VARIABLES like '%log_bin%'

2、修改mysql的my.ini文件开启bin日志功能

添加以下命令：

[mysqld]
log-bin=mysql-bin
binlog-format=ROW
server_id=1

添加完毕后重启mysql服务，再通过第一条命令查看是否打开bin日志功能

注意：如果找不到mysql的目录可通过以下sql查询路径

show variables like '%basedir%'

3、下载Canal并解压

Canal Github地址：

https://github.com/alibaba/canal

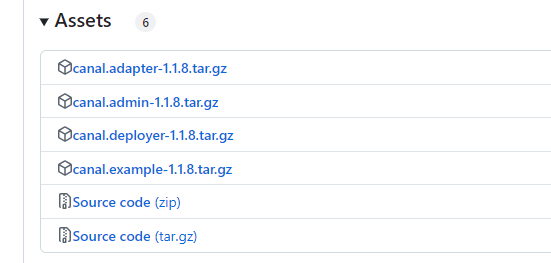

选择下载tar.gz解压即可

4、配置Canal参数

解压后Canal在conf/example目录下有一个instance.properties配置文件

我们主要配置的以下基本参数

#改成自己的数据库信息
canal.instance.master.address = 127.0.0.1:3306
canal.instance.dbUsername = canal
canal.instance.dbPassword = canal

5、启动Canal

在Canal的安装目录下的bin目录中启动startup.bat，这里我用的是windows

启动之后去查看安装目录下的logs/example/example.log这个log文件

出现success即可

2013-02-05 22:50:45.636 [main] INFO  c.a.o.c.i.spring.support.PropertyPlaceholderConfigurer - Loading properties file from class path resource [canal.properties]
2013-02-05 22:50:45.641 [main] INFO  c.a.o.c.i.spring.support.PropertyPlaceholderConfigurer - Loading properties file from class path resource [example/instance.properties]
2013-02-05 22:50:45.803 [main] INFO  c.a.otter.canal.instance.spring.CanalInstanceWithSpring - start CannalInstance for 1-example
2013-02-05 22:50:45.810 [main] INFO  c.a.otter.canal.instance.spring.CanalInstanceWithSpring - start successful....

6、Springboot引入pom文件

    <dependency>
      <groupId>com.alibaba.otter</groupId>
      <artifactId>canal.client</artifactId>
      <version>1.1.0</version>
    </dependency>

7、测试Demo

import java.net.InetSocketAddress;
import java.util.List;


import com.alibaba.otter.canal.client.CanalConnectors;
import com.alibaba.otter.canal.client.CanalConnector;
import com.alibaba.otter.canal.common.utils.AddressUtils;
import com.alibaba.otter.canal.protocol.Message;
import com.alibaba.otter.canal.protocol.CanalEntry.Column;
import com.alibaba.otter.canal.protocol.CanalEntry.Entry;
import com.alibaba.otter.canal.protocol.CanalEntry.EntryType;
import com.alibaba.otter.canal.protocol.CanalEntry.EventType;
import com.alibaba.otter.canal.protocol.CanalEntry.RowChange;
import com.alibaba.otter.canal.protocol.CanalEntry.RowData;


public class SimpleCanalClientExample {


    public static void main(String args[]) {
        // 创建链接
        CanalConnector connector = CanalConnectors.newSingleConnector(new InetSocketAddress(AddressUtils.getHostIp(),
                11111), "example", "", "");
        int batchSize = 1000;
        int emptyCount = 0;
        try {
            connector.connect();
            connector.subscribe(".*\\..*");
            connector.rollback();
            int totalEmptyCount = 120;
            while (emptyCount < totalEmptyCount) {
                Message message = connector.getWithoutAck(batchSize); // 获取指定数量的数据
                long batchId = message.getId();
                int size = message.getEntries().size();
                if (batchId == -1 || size == 0) {
                    emptyCount++;
                    System.out.println("empty count : " + emptyCount);
                    try {
                        Thread.sleep(1000);
                    } catch (InterruptedException e) {
                    }
                } else {
                    emptyCount = 0;
                    // System.out.printf("message[batchId=%s,size=%s] \n", batchId, size);
                    printEntry(message.getEntries());
                }

                connector.ack(batchId); // 提交确认
                // connector.rollback(batchId); // 处理失败, 回滚数据
            }

            System.out.println("empty too many times, exit");
        } finally {
            connector.disconnect();
        }
    }

    private static void printEntry(List<Entry> entrys) {
        for (Entry entry : entrys) {
            if (entry.getEntryType() == EntryType.TRANSACTIONBEGIN || entry.getEntryType() == EntryType.TRANSACTIONEND) {
                continue;
            }

            RowChange rowChage = null;
            try {
                rowChage = RowChange.parseFrom(entry.getStoreValue());
            } catch (Exception e) {
                throw new RuntimeException("ERROR ## parser of eromanga-event has an error , data:" + entry.toString(),
                        e);
            }

            EventType eventType = rowChage.getEventType();
            System.out.println(String.format("================&gt; binlog[%s:%s] , name[%s,%s] , eventType : %s",
                    entry.getHeader().getLogfileName(), entry.getHeader().getLogfileOffset(),
                    entry.getHeader().getSchemaName(), entry.getHeader().getTableName(),
                    eventType));

            for (RowData rowData : rowChage.getRowDatasList()) {
                if (eventType == EventType.DELETE) {
                    printColumn(rowData.getBeforeColumnsList());
                } else if (eventType == EventType.INSERT) {
                    printColumn(rowData.getAfterColumnsList());
                } else {
                    System.out.println("-------&gt; before");
                    printColumn(rowData.getBeforeColumnsList());
                    System.out.println("-------&gt; after");
                    printColumn(rowData.getAfterColumnsList());
                }
            }
        }
    }

    private static void printColumn(List<Column> columns) {
        for (Column column : columns) {
            System.out.println(column.getName() + " : " + column.getValue() + "    update=" + column.getUpdated());
        }
    }
}
